BLUR 150 BODY PANELS

updated 8.14.12

PART	PART NAME	BLUR 150 ORANGE BLACK	BLUR 150 BLACK GRAY	BLUR SS220i GREY	BLUR SS220i WHITE
1	HANDLE COVER UPPER	M26130002R0	M2613000690	M26130007N0	M2613000710
2	WINDSHIELD	M26210006B0	M26210006B0	M26210007N0	M2621000710
3	FR FENDER	M26320016B0	M26320016B0	M26320017N0	M2632001710
4	BODY COVER,LH	M26253006B0	M26253006B0	M26253007N0	M2625300710
5	BODY COVER,RH	M26255006B0	M26255006B0	M26255007N0	M2625500710
6	TURN SIGNAL FRONT ASSY,INNER COVER(LH)	M26213006B0	M26213007R0	M26213007R0	M2621300710
7	TURN SIGNAL FRONT ASSY,INNER COVER(RH)	M262A3006B0	M262A3007R0	M262A3007R0	M262A300710
8	LOWER COVER(LEFT)	M26263006B0	M26263006B0	M26263017N00	M26263017100
9	LOWER COVER(RIGHT)	M26265016B00	M26265016B00	M26265037N00	M26265037100
10	KEEL COVER,LH	M26240112R0	M2624011690	M26240117R0	M2624011710
11	KEEL COVER,RH	M262D0112R0	M262D011690	M262D0117R0	M262D011710
12	AGAINST SUN PLATE	M2613020000	M2613020000	M2613020000	M2613020000
13	WINSHIELD,OUTER COVER(BLACK)	M2621010690	M2621010690	M2621010690	M2621010690
14	HANDLE COVER LOWER	M2614001650	M2614001650	M26140026500	M26140026500
15	INNER COVER,FRT	M262C0136500	M262C0136500	M262C0136500	M262C0136500
16	STEP FLOOR,LH	M2624001650	M2624001650	M26240026500	M26240026500
17	STEP FLOOR,RH	M262D001650	M262D001650	M262D0026500	M262D0026500
18	LEFT HANGER COVER	M2624060650	M2624060650	M26240816505	M26240816505
19	RIGHT HANGER COVER	M2624070650	M2624070650	M26240716505	M26240716505
20	LICENCE PLATE	M2636001650	M2636001650	M26360026500	M26360026500
21	FUEL TANK COVER,FR.	M26250116500	M26250116500	M26250126500	M26250126500
22	REAR FENDER	M2634000650	M2634000650	C76340006500	C76340006500
23	RR LUGGAGE BRACKET	M26760002R0	M2676000690	M26760007R0	M2676000710
*	MIRROR LEFT	NA	NA	NA	BF61F0100000
*	MIRROR RIGHT	NA	NA	NA	BF61F0200000
*	MIRROR SET ONLY	P2616000000	P2616000000	BF6160000002	NA

Page 1 Crankcase

Genuine Blur Crankcase Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C50610000001S	1	RH CRANKCASE	M2-150
2	E1061020000	1	RUBBER BUSH
3	90190605003	2	HEXAGON FLANGE BOLT
4	90170818800	2	STUP BOLT
5	G1061070000	1	PLUG OIL
6	93540801400	2	LOCK PIN
7	C5061041000	1	CRANKCASE GASKET
8	90170819500	2	STUD BOLT
9	C50620100002	1	LH.CRANKCASE	M2-150
10	E1061020000	1	RUBBER BUSH
11	90181201500	1	HEXAGON FLANGE BOLT	DRAIN OIL
12	92141200006	1	PLAIN WASHER
13	95572032601	1	OIL SEALTC TYPE	M2-150
14	96510620407	1	DEEP GROOVE BALL BEARING
15	96510620200	1	DEEP GROOVE BALL BEARING
16	96510620301	1	DEEP GROOVE BALL BEARING
17	95572032600	1	OIL SEAL TC TYPE	FOR PULLEY
21	92140800001	1	PLAIN WASHER
22	90190801200	1	HEXAGON FLANGE BOLT
23	C5286010000	1	SECOND AIR REED VALVE COMP
24	90190602700	2	HEXAGON FLANGE BOLT
30	C506K0100002	1	RH AND LH CRANKCASE ASSY.	M2-150
31	C1286161000	1	GASKET SECOND AIR COVER
32	C5286060000	1	COVER,SECOND AIR	M2-150
33	C1286190000	1	GASKET,TUBE
34	C3286201000	1	TUBE COMP	M2-150
35	90190603502	2	HEXAGON FLANGE BOLT
36	90190601200	1	HEXAGON FLANGE BOLT	M2-150

Page 2 Left Side Cover

Genuine Blur Left Side Cover Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C1063010720	1	LH SIDE COVER
2	C1063021000	1	GASKET LEFT COVER
3	93540801400	2	LOCK PIN
4	C10630600001	1	PARTITION PLATE
5	C1063120000	1	PARTITION PLATE PACKING
6	92110500000	4	SPRING WASHER
7	90050500900	4	C-R ROUND HD. TAPPING SCREW
8	C1251001000	1	DRIVEN GEAR & SPG. ASSY.
9	C1062081000	1	BRACKET, CENTER STAND
10	C16031400001	1	GEAR OIL NOTICE LABEL(ENGLISH)
11	C1251112000	1	TORSION SPRING
12	C1251101000	1	KICK,SHAFT ASSY
13	C1251120000	1	BUSH,KICK SPINPLE
14	92141700002	1	PLAIN WASHER
15	92171700000	1	RETAINING RING C-TYPE
16	C1251200000	1	ARM,KICK STARTER ASSY
17	E1251240000	1	RUBBER,PAD,KICK STARTER
18	90210802500	1	HEXANON SOCKET HEAD CAP BOLT
19	90190604001	10	HEXAGON FLANGE BOLT
20	M2063100000	1	BREATHER PIPE COMP
21	M2063030000	1	BREATHER PIPE
22	C1063092000	1	SPONGE,BREATHER PIPE
23	C1063110000	1	FIXING PLATE
24	C1706280000	1	CLAMP
25	C1251171000	1	START FIXED SHAFT

Page 3 (Cylinder Head Assembly)

Genuine Blur Cylinder Head Assembly Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C50710120001	1	HEAD COMP. CYLINDER	W/H SAI
5	C5071200000	1	VALVE EXHAUST
6	C5071300000	1	VALVE INLET
7	C5071071000	1	GASKET HEAD CYL.
8	93541001401	2	LOCK PIN
9	90190610000	2	HEXAGON FLANGE BOLT
10	90170802900	2	STUD BOLT
11	90170606300	2	STUD BOLT
12	C1261321000	1	INSULATOR CARB GASKET
13	C1261310000	1	INSULATOR CARB
14	C1261052000	1	INTAKE MANIFOLD COMP
15	95512700001	1	O RING
16	90150400800	4	C-R TAPPING MACHINE SCREW
17	C1261061000	1	HOSE CLAMP
18	92040600000	2	HEXAGON FLANGE NUT
19	C12220000002	1	IGNITION PLUG
20	92431600002	2	PLAIN WASHER
21	C5071411000	2	SPRING,VALVE	RED
22	C1071440000	2	RETAIER VALVE SPRING
23	C1071430000	4	COTTER VALVE
24	C5073000000	1	CAM,SHAFT ASSY.	M2-150
25	C1072060000	1	SHAFT,EX.ROCKER ARM
26	C1072010000	2	VALVE RXKER ARM
27	C1072420000	2	SCREW TOPPED ADJUSTER
28	92020500001	2	HEXAGON NUT
29	C1072050000	1	SHAFT,EX.ROCKER ARM
30	93541001401	2	LOCK PIN
31	C1072430000	1	CAMSHAFT HOLDER
32	92140800000	4	PLAIN WASHER
33	92040800000	4	HEXAGON FLANGE NUT
34	C2071102000	1	CYL.HEAD COVER COMP.
35	C1071120000	1	DACKING,CYL. HEAD COVER
36	C1071130000	1	TUBE CYL HEAD COVER
37	ES071190000	1	PCV PIPE ASSY
38	90190602700	4	HEXAGON FLANGE BOLT
39	C1071451000	2	VALVE SEAL
41	C10711500001	1	PARTITION Plate
42	C10711100003	1	CYLINDER HEAD COVER	CP/CS
43	C5071421000	2	SPRING,VALVE

Page 4 Cylinder, Piston, Crankshaft

Genuine Blur Cylinder Piston Crankshaft Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	M2066501000	1	CRANKSHAFT COMP.	M2-150
2	93530402500	2	WOODRUFF KEY
3	C5067012000	1	PISTON
4	G1067151000	2	CLIP,PISTON PIN
5	C5067110000	1	PISTON PIN
6	C5067310000	1	PISTON RING (1)
7	C5067320000	1	PISTON RING (2)
8	C5067400000	1	OIL SCRAPER RING COMP
9	C50640100005	1	CYLINDER
10	C5072500000	1	CHAIN ADJUSTER COMP.
11	C5072481000	1	GASKET,CHAIN ADJUSTER
13	90070600600	1	CHAIN ADJUSTER BOLT
14	95511000002	1	O RING
15	90190602000	1	HEXAGON FLANGE BOLT
16	C5064111000	1	GASKET CYLINDER
17	93541001401	2	LOCK PIN
18	C1072460000	1	CHAIN,CAMSHAFT
19	C1072440000	1	TENSIONER,CAM CHAIN
20	C5072470000	1	GUIDE COMP,CAM CHAIN
21	C1072490000	1	PIVOT,CAM CHAIN TENSION
22	95511500001	1	O RING
23	C1062100000	2	ROLLER BEARING
24	90190601200	1	HEXAGON FLANGE BOLT
25	92140600011	1	PLAIN WASHER
26	C5066130000	1	TIMING SPROCKET
27	C1066140000	1	OIL PUMP SPROCKET
28	M206F010000	1	LH & RH CRANKSHAFT ASSY.
29	C506F1100002	1	CONNECTING ROD ASSY.

Page 5 Right Crankcase Cover

Genuine Blur Right Crankcase Cover Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C10680100002	1	RH. CRANKCASE COVER
2	C1068021000	1	GASKET RH. CRANKCASE COVER
3	95572030501	1	OIL SEAL TC TYPE	FOR RH CASE COVER
4	93540801400	2	LOCK PIN
5	C2068110000	1	GAUSE,OIL LEVEL COMP
6	90190603000	1	HEXAGON FLANGE BOLT
7	95511800001	1	O-RING
8	C1706640000	1	A.C.G PLATE
9	90190602700	1	HEXAGON FLANGE BOLT
10	90190609500	4	HEXAGON FLANGE BOLT
11	90190610000	1	HEXAGON FLANGE BOLT
12	90190611000	2	HEXAGON FLANGE BOLT
13	G1062180000	1	SCREEN OIL FILTER
14	C1062190000	1	SPRING OIL FILTER SCREEN
15	95513100000	1	O-RING
16	C1062240000	1	CAP TAPPET ADJUSTING HOLE
17	C1701270000	1	PURSE LOCK
18	M22410300006	1	START MOTOR, LINE

Page 6 Carburetor

Genuine Blur Carburetor Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C51510000003	1	CARBURETOR ASSY (SETTING 115)	M2-150
2	16199GY69000	1	TUBE SET
3	14029232201	1	VACUUM PISTON COMP
4	N4254HGGN	1	JET NEEDLE COMP
5	12298057000	1	VALVE PLATE SET
6	1290A232000	1	SPG;COMPR
7	10308737003	1	TOP SET
8	1108031100	2	SCREW,PAN
9	N42633C00	1	NEEDLE JET	M2-150
10	N41318C00	1	NEEDLE JET HOLDER
11	991011161020	1	MAIN JET
12	1001440H0381	1	SLOW JET	M2-150
13	16155ZG8L100	1	FLOAT VALVE SET
14	10528622101	1	FLOAT COMP
15	W952525250	1	ARM PIN
16	K3500840100	1	FLOAT CHAMBER SET
17	93500040121H	3	SCREW,PAN
18	12308567001	1	HOLDER CAP
19	40000940000	1	AUTO BYSTARTER SET
20	938920400818	1	SCREW WASHER
21	10908732001	1	SET PLATE
22	10280547000	1	SEALING CAP
23	12018302201	1	DIAPHRAGM COMP
24	1290A072000	1	SPG;COMPR
25	12308502000	1	COVER
26	93500040101H	2	SCREW;PAN

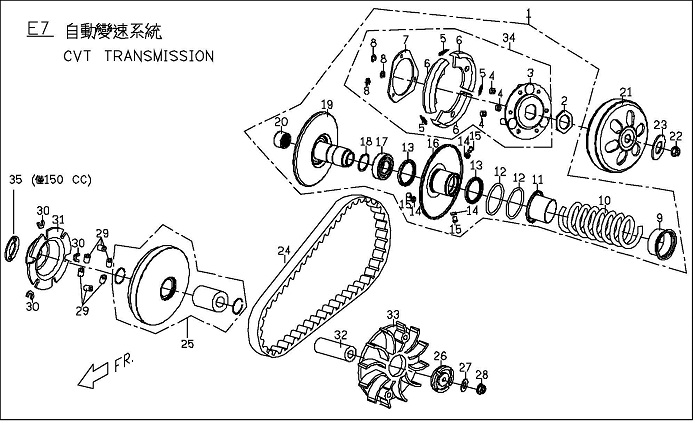

Page 7 Transmission

Genuine Blur Transmission Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C5123701000	1	BELT PULLEY COMP,DRIVEN FACE
2	P1123410000	1	NUT
3	C1123300000	1	BODY COMP,DRIVE PLATE
4	C1123420000	3	DAMPER RUBBER,CLUTCH
5	C1123430000	3	SPRING,CLUTCH
6	C51234400000	3	WEIGHT SET,CLUTCH
7	C1123450000	1	PRESSURE PLATE,CLUTCH
8	92180700000	3	RETAINING RING E TYPE
9	C1123330000	1	COLLAR,SPRING
10	C5123520000	1	SPG,DRIVEN FACE
11	C1123530000	1	SEALED SOCKET
12	95514000001	2	0-RING
13	95593441400	2	OIL SEAL G TYPE
14	C1123250000	3	BUSH
15	C1123240000	3	PIN,GRIDE
16	C1123210000	1	BODY COMP,DRIVEN FACE
17	96520690200	1	DEEP GROOVE BALL BEAR ONE SEAL
18	92162800000	1	RETAINING RING C TYPE
19	C1123110000	1	DOBY COMP,DRIVEN FACE
20	96550202900	1	NEEDLE BEARING
21	C1123510000	1	OUTER BODY COMP,CLUTCH
22	92041200002	1	HEXAGON FLANGE NUT
23	92141200005	1	PLAIN WASHER
24	C11220000001	1	V BELT
25	C11211000001	1	FACE MOVABLE DRIVE
26	C1251030000	1	RATCHET KICK STARTER
27	92141200005	1	PLAIN WASHER
28	92041200002	1	HEXAGON FLANGE NUT
29	C1121200000	6	WEIGHT ROLLER COMP.	M2-150
30	C1121321000	3	SIDE PIECE
31	C1121310000	1	RAMP PLATE
32	C1121050000	1	BOSS,MOVABLE DRIVE FACE
33	C11210600001	1	DRIVE FACE
34	C51236000000	1	DRIVEN PULLEY ASSY.
35	C5066051000	1	DRIVEN PULLEY ASSY.	M2-150 ONLY

Page 8 Fan Cover, Generator

Genuine Blur Fan Cover Generator Parts
No.	Part No.	Q'TY	PART NAME	SPECIFICATION
1	C52210000001	1	DC GENERATOR ASSY	M2-150
2	C52210100001	1	FLYWHEEL COMP	M2-150
3	C2221020000	1	STATOR COMP
4	90180602000	2	HEXAGON FLANGE BOLT
5	90190501201	2	HEXAGON FLANGE BOLT
6	92041200000	1	HEXAGON FLANGE NUT
7	C1043001000	1	FAN
8	90190601204	4	HEXAGON FLANGE BOLT
9	C1042001000	1	FAN COVER
10	C1042030000	1	RUBBER PLUG
11	90180602000	4	HEXAGON FLANGE BOLT
12	90130501400	4	CR PAN HD.TAPPING SCREW
13	C50422110001	1	COOLING COWL(2)	M2-150
14	C5042102000	1	COOLING COWL(1)	M2-150
15	C1042120000	1	SEAL,COOLING HOOD(1)
16	C1042220000	1	SEAL,COOLING HOOD(2)
17	C1701260000	1	RUBBER PLUG
18	C1042242000	1	FAN COVER'S COVER
19	90110401600	3	CR PAN HD.TAPPING SCREW
20	C16031300001	1	OIL NOTICE LABEL (ENGLISH)
21	92141200005	1	PLAIN WASHER
22	C1701290000	1	PLASTIC LOCKER
23	92110500000	2	PLAIN WASHER
24	C1706640000	1	ACG PLATE
25	C1042270000	1	AIR PIPE	OPTIONAL FOR FROZEN AREA

Page 9 Starting Motor Oil Pump

Genuine Blur Starting Motor Oil Pump Parts

Genuine Blur Starting Motor Oil Pump Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	C1081000000	1	OIL PUMP ASSY
2	C1243030000	3	ROLLER ONE WAY CLUTCH
3	C1243020000	3	COP,ROLLER SPRING
4	G1243010000	3	COMPRESS SPRING
5	C12430500001	1	COVER CLUTCH OUTER
6	90210801000	3	INNER HEX BOLT
7	96590283200	1	NEEDLE BEARING
8	C1081070000	1	SHAFT,OIL PUMP
9	90190602700	2	HEXAGON FLANGE BOLT
10	C1081030000	1	SPRKT OIL PUMP DRIVEN
11	92040600000	1	HEXAGON FLANGE BOLT
12	C1081220000	1	CHAIN,OIL PUMP
13	C1081230000	1	SEPARATER OIL
14	E1681030000	2	WITH WASHER HEX BOLT
15	C1241000000	1	START MOOT COMP.
16	95512400002	1	O RING
17	90190601601	2	HEXAGON FLANGE BOLT
18	C1242040000	1	SHAFT,STARTET REDUCTION GEAR
19	C1242010000	1	GEAR,STARTER REOUCTION
20	C12430000001	1	ONE WAY CLUTCH ASSY.
21	NA	1	ONE WAY CLUTCH COMP.
22	C1244000000	1	GEAR COMP.STARTING CLUTCH
23	92142200000	1	PLAIN WASHER
24	C1243060000	1	NUT LOCK

Page 10 Gear Transmission

Genuine Blur Gear Transmission Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	C2141011000	1	TRANSMISSION COVER
2	C2141021000	1	TRANSMISSION COVER GASKET
3	93541001401	2	LOCK PIN
4	96510630100	1	BALL BEARING
5	96510600200	1	BALL BEARING
6	96530622200	1	BALL BEARING.DOUBLE SEALED
7	C3141100000	1	DRIVE SHAFT	M2-150
8	C31412000001	1	IDLE GEAR COMP.	M2-150
9	C11414110001	1	AXLE DRIVE
10	C11413100003	1	FINAL GEAR	M2-150
11	92172000000	1	RETAINING RING C TYPE
12	95572742702	1	OIL SEAL TC TYPE
13	92165000000	1	RETAINING RING C TYPE
14	M2407430000	1	PIVOT REAR BK.SHDE
15	95510800000	1	O RING
16	90190805001	1	HEXAGON FLANGE BOLT
17	90190804501	1	HEXAGON FLANGE BOLT
18	90190804003	4	HEXAGON FLANGE BOLT
19	90190802600	1	HEXAGON FLANGE BOLT
20	92060800000	1	HEXAGON FLANGE NUT
21	P1062150000	1	OIL BOLT
22	95511300001	1	O-RING
23	M2701070000	1	RUBBER PLUG

Page 11 Air Cleaner Complete

Genuine Blur Air Cleaner Complete
No.	Part No.	Q’TY	PART NAME	REMARK
1	M22620010002	1	AIR CLEAN ASSEMBLY	M2-150
2	NA	1	AIR CLEANER BODY
3	M2262020000	1	AIR CLEANER COVER
4	M2262060000	1	INDUCT PIPE
5	M2262030000	1	ELEMENT, AIR CLEANER
6	M2262040000	1	PACKING
8	M2262050000	1	OUTLET PIPE	M2-150
9	M2262360000	2	2 WAY CONNECTOR
10	92221000001	2	PLAIN CLIP
11	M2262110000	1	CLIP
12	M2262380000	1	CLIP
13	90150502500	6	TAPPING SCREW
14	NE262060000	2	BUSH
15	90190603000	2	HEXAGON FLANGE BOLT
16	92140600005	2	PLAIN WASHER
17	M2262070000	1	ELEMENT & PACKING ASSY.

Page 12 Muffler

Genuine Blur Muffler Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	C52815010003	1	MUFFLER ASSEMBLY	W/O CATALYST
2	M22810100003	1	HEAT PROTECTOR	NO WORD
3	90050602000	2	C-R PAN HD MACHINE SCREW
4	92140600015	4	PACKING
5	C328A040000	2	CIRCLET
6	C328A020000	2	INNER SPACER
7	90050601000	2	C-R PAN HD MACHINE SCREW
9	C5281070000	1	SEALING BUSH
10	C5281081000	1	CONNECTOR ASSY.
11	F3281100000	1	FRONT SECTION, MUFFLER
12	E9281020000	1	GASKET, MUFFLER
13	92050800000	2	HEXAGON CASTLE NUT
14	90191004501	1	HEXAGON FLANGE BOLT
15	90191008500	1	HEXAGON FLANGE BOLT

Page 13 Rear Wheel

Genuine Blur Rear Wheel Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2634000650	1	REAR FENDER
2	90130501400	2	CR PAN HD.TAPPING SCREW
3	M240G320000	1	REAR TIRE	after-service part
4	M24061012R00	1	REAR WHEEL RIM	ORANGE
5	P140B330000	1	VALVE
6	M2406800000	1	REAR BRAKE DISK
7	C1403510000	5	SCREW, FR BRAKE DISK(M81.25P24L)
8	M2406840000	1	BUSH
9	M2406833000	1	REAR ENGINE BRACKET
10	96530600300	1	BALL BEARING, DOUBLE SEALED
11	92141600002	1	WASHER
12	92011600000	1	U TYPE SPRING NUT
13	90190804501	1	HEXAGON FLANGE BOLT
14	90190804501	1	HEXAGON FLANGE BOLT
15	90190802300	2	HEXAGON FLANGE BOLT
16	M24066027705	1	REAR BRAKE CALIPER
17	M2403720000	1	BRAKE TUBE CLAMP (B)
18	M2403710000	2	BRAKE TUBE CLAMP (A)
19	90190602002	3	HEXAGON FLANGE BOLT
20	M2701050000	1	RUBBER PLUG
22	M240F1500005	1	INNER PAD
23	M240F1600005	1	OUTTER PAD
24	M240F0800005	1	YOKE
25	M2403701000	1	REAR BRAKE HOSE
26	92163500000	1	C CLIP
27	M2406823000	1	REAR ENGINE BRACKET ASSY.

Page 14 Oil Cooler & Left Cover

Genuine Blur Oil Cooler and Left Cover Parts
No.	Part No.	Q'TY	PART NAME	REMARK
1	C5083010000	1	OIL COOLER ASSY.
2	C5083020000	1	RADIATOR, UPPER
3	C5083030000	1	RADIATOR, LOWER
4	G1061070000	1	OIL PLUG
5	C5083040000	1	OIL SEAL
6	93560401000	2	LOCK PIN
7	90210601800	8	HEXAGON SOCKET HD. CAP SCREW
8	C5083080000	1	OIL FILTER JOINT
9	C1082020000	1	OIL FILTER
10	F30830510000	1	OIL COOLER PIPE(1)
11	F30830610000	1	OIL COOLER PIPE(2)
15	C5083070000	4	OIL PASS BOLT
16	92141200006	8	PLAIN WASHER
17	C50610000001S	1	RH CRANKCASE ASSY.	M2-150
18	90190807500	2	HEXAGON FLANGE BOLT

Page 15 AIAC Assembly

Genuine Blur AIAC Assembly Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2286301000	1	AIAC SYSTEM
2	P62862100001	1	REED VALVE ASSY.
3	M2286240000	1	VACUUM PIPE (A)
4	C1286250000	1	VACUUM PIPE (B)
5	M2286260000	1	VACUUM PIPE (C)
6	M2286271000	1	BREATHING PIPE (A)
7	P6286270000	1	BREATHING PIPE (B)
8	C1286290000	1	3 WAY CONNECTOR
9	92200700000	5	CLIP
12	C1286310000	2	SPONGE

Page 16 Cover Upper and Lower Handlebar, Sunplate

Genuine Blur Cover Upper and Lower Handle Bar and Sunplate

Genuine Blur Cover Upper and Lower Handlebar and Sunplate Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M26130002R0	1	HANDLE COVER UPER	ORANGE
2	M2614001650	1	HANDLE COVER LOWER
3	M26120026000	1	HANDLE BAR ASSY.
4	M2613020000	1	AGAINST SUN PLATE
5	90110401200	11	CR PAN HD TAPPING SCREW(M4*12L)
6	90191005002	1	HEXAGON FLANGE BOLT (M10*1.25P
7	C1612011000	1	PLAIN RING
8	92061000001	2	HEXAGON LOCK NUT (M10*1.25P)
9	90040601400	2	CR PAN HD MACHINE SCREW(M6*14L
10	92140600005	2	WASHER (6.4D13D1T)

Page 17 Speedometer

Genuine Blur Speedometer Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2561000000B	1	SPEEDMETER ASSY.
2	M256A020000	1	LENS
3	M256A070000	1	DECORATED PLATE
4	NA	1	BASE
5	M256A040000	1	DIGITAL CLOCK
6	M256A050000	1	ADJUSTING BUTTON ASSY.
7	M256A080000	6	BULB	1.7W
8	M256A060000	1	CONNECTING WIRE
9	M2544000000	1	SPEED METER CABLE ASSY
10	M254D060000	1	INNER WIRE
11	90110401200	4	CR PAN HD TAPPING SCREW(M4*12L)

Page 18 Cable, Switch, Back Mirror

Genuine Blur Cable, Switch, and Mirror Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	P261F010000	1	LH BACK MIRROR
2	M2546000000	1	HANDLEBAR SWITCH ASSY, LH
6	C254F0300005	1	CASE,SWITCH UNDER 2 ASSY.
7	M254F020000	1	CASE,SWITCH UNDER 1
10	M240C190000	1	LEVER,LH BRAKE
11	M25480300000	1	STOP SWITCH COMP
12	P154F390000	1	SCREW,PAN HEAD
13	P154F400000	1	SCREW,PAN HEAD
14	M24030020000	1	MASTER CYLINDER, FR BRAKE
16	P140C130000	2	SCREW
17	P140C120000	1	CAP,RESERVOIR
18	P140C110000	2	DIAPHRAGM,RESERVOIR
19	P140C240000	2	BRACKET,MASTER CYLINDER
20	P1402500000	2	HEX SOCKET HEAD BOLT
21	P140C220000	2	BOLT
22	P140C230000	2	FLANGE NUT
23	M240C190000	1	LEVER,RH BRAKE
24	M25480300000	1	SWITCH COMP
25	P25480000001	1	SWITCH ASSY.RH HANDLEBAR
26	P254H0100001	1	CASE,SWITCH UNDER 2 ASSY.
27	C25410000001	1	GRIP ASSY, LH
28	C25420000001	1	GRIP ASSY, RH
29	P154H020000	1	CASE,SWITCH UNDER 1
30	P154F400000	1	C-R ROUND HD TAPPING
31	P154F390000	1	C-R ROUND HD TAPPING
32	M2403701000	1	REAR BRAKING TUBE
33	P14038110000	1	JOINT BOLT,BRAKE HOSE
34	92141000002	4	PLAIN WASHER
35	M2544600000	1	THROTTLE CABLE
36	90040501200	1	CR PAN HD MACHINE SCREW(M5*12L)
37	P261F020000	1	RH BACK MIRROR
38	P2616000000	1	BACK MIRROR COMP
39	M24063030000	1	REAR BRAKING MASTER CYLINDER
40	M24036010000	1	FRONT BRAKE TUBE

Page 19 Front Fork

Genuine Blur Front Fork Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2443002720	1	FRONT FORK ASSY
2	C144C160000	2	OIL SEAL
3	C144C030000	4	HEXAGON BOLT
4	C144C040000	2	BOOT
5	C144C050000	2	BOLT ASSY.
6	M244C061000	2	SPRING, FRONT FORK
8	C144C080000	2	INNER.TUBE COMP
10	C144C100000	2	PLAIN WASHER
11	C144C110000	2	HEXAGON BOLT
13	C144C130000	1	GASKET
14	P244C040000	1	COVER
15	C144C150000	1	INNER BEARING CAGE
17	M244C200000	1	UNDER BRACKET,COMP.
18	No longer sold separately	1	TUBE COMP. LH
19	No longer sold separately	1	TUBE COMP. RH
20	99010600000	19	BEARING BALL(1/4")
21	99010400000	26	BEARING BALL
22	E1444050000	1	UPPER RING-SHAPE NUT
23	E1444040000	1	STEERING SHAFT LOCK NUT
24	M26320016B0	1	FR FENDER	BLACK
25	92140600018	5	PLAIN WASHER
26	90040601600	6	CR PAN HD MACHINE SCREW
27	92110600000	5	SPRING WASHER
28	M2544020000	1	SPEEDMETER CABLE CLIP COMP (R)
29	P26690000001	2	REFLECTOR
30	E1701031000	4	TIE BAND

Page 20 Tire, Front Wheel, Front Caliper

Genuine Blur Tire, Front Wheel, and Front Caliper Parts

Genuine Blur Tire, Front Wheel, and Front Caliper Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	C14025010000	1	AXLE , FR WHEEL
2	P1401010000	1	SPACER
3	95572235700	1	OIL SEAL, TC TYPE
4	96520620100	2	ONE SHIELD BALL BEARING
5	P9402401000	1	SPACER
6	M2403501000	1	BRAKING DISK
7	C1403510000	5	SCREW, FR BRAKE DISK(M81.25P24L)
9	M24011012R00	1	FRT WHEEL	ORANGE
10	M240B320000	1	FRT TIRE	after-service part
11	P140B330000	1	VAVLE
12	P1566002000	1	METER GEAR ASSY
13	95574052600	1	OIL SEAL
14	92171800000	1	C CLIP
15	92141900001	1	PLAIN WASHER
16	P1566050000	1	PAD
17	P1566040000	1	SPEEDOMETER GEAR
18	92141900002	1	PLAIN WASHER
20	92061200001	1	LOCK NUT(M12*1.25P)
21	M2403301000	1	BRAKE CALIPER, FRONT
22	M240C010000	1	PAD ASSY.
23	M240C020000	1	YOKE SPRING
24	M240C040000	1	SPRING PIN
26	M240C030000	1	CLIP
27	90191004003	2	HEXAGON FLANGE BOLT (M10*40L)

Page 21 Windshield, Front Inner Cover, Front Head Light

Genuine Blur Windshield, Front Inner Cover, and Front Headlight

Genuine Blur Windshield, Front Inner Cover, and Front Headlight Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M26210006B0	1	WIND SHIELD	BLACK
2	90040601400	2	CR PAN HD MACHINE SCREW(M6*14L
3	M2621010690	1	WINSHIELD,OUTER COVER	BLACK
4	92370500003	2	U TYPE SPRING NUT
5	90130501400	9	CR TRUSS HD TAPPING SCREW (M5*16L)
6	M262C0226500	1	INNER COVER,FRT
7	90130501400	4	CR ROUND HD TAPPING SCREW (M5*14L)
8	M2623010650	1	COVER,VIN
9	M2623020650	1	PANEL,FRT.INNER COVER
10	M2701010000	2	PUSH RIVET
11	M26610000002	1	HEAD LIGHT ASSY.	SAE
12	98231230001	2	POSITION LAMP (INSIDE, 3W)	SAE
13	M266A0200002	1	DUMMY HEADLAMP ASSY.	SAE
14	98151235351	1	HEADLAMP BULB (35/35W)	SAE
15	98231230001	2	POSITION LAMP (OUTSIDE,3W)	SAE
16	M266A0100002	1	WIRE ASSY.	SAE
17	90130501400	6	CR ROUND HD TAPPING SCREW (M5*14L)
18	92140600005	1	WASHER (6.4D13D1T)

Pages 22 Step Floor, Step Plate

Genuine Blur Step Floor and Step Plate Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2624001650	1	STEP FLOOR,LH
2	M262D001650	1	STEP FLOOR,RH
3	M26240112R0	1	KEEL COVER,LH	ORANGE
4	M262D0112R0	1	KEEL COVER,RH	ORANGE
5	M2624020650	1	PANEL COVER,PEDAL LEVER(LH)
6	M262D020650	1	PANEL COVER,PEDAL LEVER(RH)
7	M2624060650	1	LEFT HANGER COVER
8	M2624070650	1	RIGHT HANGER COVER
9	90040601400	4	CR PAN HD MACHINE SCREW(M6*14L
10	90040601400	8	CR PAN HD MACHINE SCREW(M6*14L
11	90210602001	4	HEXAGON SCOKET SCREW
12	92370500003	2	U TYPE SPRING NUT
13	M2624500000	1	MAT,STEP FLOOR(LH)
14	M262D500000	1	MAT,STEP FLOOR(RH)
15	90110401200	4	CR PAN HD TAPPING SCREW(M4*12L)
16	92140600005	4	WASHER (6.4D13D1T)
17	92140600018	4	WASHER
18	90130501400	2	CR TRUSS HD TAPPING SCREW (M5*16L)

Page 22 Front Lower Cover, Step Floor Lower Cover, Front Fender

Genuine Blur Front Lower Cover, Step Floor Lower Cover, Front Fender

Genuine Blur Front Lower Cover, Step Floor Lower Cover, Front Fender
No.	Part No.	Q’TY	PART NAME	REMARK
1	M26263006B0	1	LOWER COVER(LEFT)	BLACK
2	M26265016B00	1	LOWER COVER(RIGHT)	BLACK
3	M26213006B0	1	TURN SIGNAL FRONT ASSY,INNER COVER(LH)	BLACK
4	M262A3006B0	1	TURN SIGNAL FRONT ASSY,INNER COVER(RH)	BLACK
5	M2633001650	1	LOWER COVER,FRONT
6	92370500003	6	U TYPE SPRING NUT
7	90130501400	2	CR TRUSS HD TAPPING SCREW (M5*16L)
8	90130501400	6	CR ROUND HD TAPPING SCREW (M5*14L)
9	M266C1210001	1	SIGNAL LAMP ASSY., LH	E-MARK,EURO
10	M266C020000	1	LAMP COVER, LH
12	M266C010000	1	SIGNAL LAMP BASE, LH
13	98241216001	2	BULB (WHITE)	16W,E-MARK
14	M266C0600001	1	CONNECTING WIRE, LH
15	M266D1210001	1	TURN SIGNAL FRONT COMP,.RH	E-MARK,EURO
16	M266D020000	1	LAMP COVER, RH
18	M266D010000	1	SIGNAL LAMP BASE, RH
19	M266D0600001	1	CONNECTING WIRE, RH	E-MARK,EURO
20	M266C050000	4	TAPPING SCREW
21	M2626030650	1	COOLING COVER	M2-125/M2-150
22	90130501400	6	CR PAN HD TAPPING SCREW(M5*14L)
23	M2701090000	1	ANTI-WATER RUBBER
24	E9666080000	5	FIXTURE CLAMP

Page 23 Body Cover, Middle Cover, Rear Luggage, Body Lower Cover

Genuine Blur Body Cover, Middle Cover, Rear Luggage, Body Lower Cover

Genuine Blur Body Cover, Middle Cover, Rear Luggage, Body Lower Cover Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M26250116500	1	FUEL TANK COVER,FR.
2	M26253006B0	1	BODY COVER,LH	BLACK
3	M26255006B0	1	BODY COVER,RH	BLACK
4	M2625020650	1	BODY COVER,LOWER
5	M26760002R0	1	RR LUGGAGE BRACKET	ORANGE
6	90210803504	3	HEXAGON SOCKET HEAD BOLT
7	92140800010	3	WASHER (8.4D17D1.6T)
8	90130501400	2	CR PAN HD MACHINE SCREW(M6*14L
9	90040601400	1	CR PAN HD MACHINE SCREW(M6*14L
10	90130501400	1	CR ROUND HD TAPPING SCREW (M5*14L)
11	M2701020000	1	WATER PROTECTIVE RUBBER	M2-125/M2-150
12	M25213010000	1	TANK COVER	W/H EEC SYSTEM
13	M2521320000	1	TANK ,INNER COVER
14	M25213110000	1	TANK COVER LEVER CABLE
15	92140600005	2	WASHER (6.4D13D1T)
16	90190601500	3	HEXAGON FLANGE BOLT (M6*15L)
17	90040501200	1	CR PAN HD MACHINE SCREW(M5*12L)

Page 24 Seat, Front Luggage, Back Luggage

Genuine Blur Seat, Front Luggage, Back Luggage

Genuine Blur Seat, Front Luggage, Back Luggage Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M26710010005	1	SEAT COMP.	GENUINE
2	M2681001000	1	HELMET CASE ASSY., FRT SECTION	M2-125/M2-150
3	M26810110000	1	HELMET CASE ASSY., REAR SECTION	M2-125/M2-150
4	90200602001	6	HEXAGON FLANGE BOLT (M6*1.0P)
5	92370500003	2	U TYPE SPRING NUT
6	90040601400	2	CR PAN HD MACHINE SCREW(M6*14L	M2-125/M2-150
7	C2583000000	1	BATTERY(7L)	M2-125/M2-150
8	M2624050650	1	BATTERY COVER	M2-125/M2-150
9	M2624030650	1	COVER,ELECTRICAL UNITS
10	C1681060000	1	BRACKET, LUGGAGE
11	92040600000	2	HEXAGON FLANGE NUT (M6*1.0P)
12	C1681070000	1	SPECIAL BOLT
13	M2701040000	1	REMOVEABLE CABLE TIE
14	P6706540000	1	TOOL KIT	M2-125/M2-150
19	C1042030000	2	RUBBER PLUG
20	M2681020000	1	LUGGAGE LIGHTING LAMP
26	M268A010000	1	COVER,LUGGAGE LIGHTING LAMP
27	M268A040000	1	BULB
28	M25831000000	1	DAMPER, BATTERY	M2-125/M2-150
29	M25831000000	1	DAMPER, BATTERY	M2-125/M2-150
30	M2671301000	1	SEATLOCK ASSY
31	90040601400	2	CR PAN HD MACHINE SCREW(M6*14L
32	C26711210000	1	SEAT LOCK LEVER CABLE
33	M267A320000	1	LIGTING SENSOR
34	90110401600	1	TAPPING SCREW

Page 25 License Plate, Reflector, and Back Lamp

Genuine Blur License Plate, Reflector, and Back Lamp

Genuine Blur License Plate, Reflector, and Back Lamp Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2636001650	1	LICENCE PLATE
2	C5669000000	1	REFLECTOR DOT
3	92140500014	1	PLAIN WASHER
4	92040600000	2	HEXAGON FLANGE NUT (M6*1.0P)
5	C16690000001	2	REFLECTOR SIDE	RED
6	M26660000001	1	REAR LAMP ASSY.	SAE, EURO
7	M266F010000	1	COVER	SAE, EURO
9	98311221051	1	BRAKING BULB	SAE, EURO
10	98241216001	2	SIGNAL LAMP (16W)	SAE, EURO
11	M266F070000	2	TAPPING SCREW	SAE, EURO
15	90110401200	1	CR PAN HD TAPPING SCREW(M4*12L)
16	92040600000	2	HEXAGON FLANGE NUT (M6*1.0P)
17	90040601400	2	CR PAN HD MACHINE SCREW(M6*14L
18	92140600005	2	WASHER (6.4D13D1T)
19	M2701010000	2	PUSH RIVET
20	92020500000	1	HEXAGON NUT (M5*0.8P)
21	P2635001650	1	LOWER MUD PROTECTOR, REAR
22	90110401200	2	CR PAN HD TAPPING SCREW(M4*12L)

Page 26 Frame

Genuine Blur Frame Parts
No.	Part No.	Q’TY	PART NAME	REMARK
1	No longer sold due to liability reasons	1	FRAME ASSY	M2-125/M2-150
2	M2421420000	1	SUPPORTING HOLDER ,STEPFLOOR(LH)
3	M242A420000	1	SUPPORTING HOLDER ,STEPFLOOR(RH)
4	M2421410000	1	LICENCE PLATE , LINK PLATE
5	M2481002000	1	CUSHION ASSY, RR	M2-125/M2-150
6	M2451031600	1	ENGINE HANGER, LOWER	M2-125/M2-150
8	M2451011600	1	TRIANGLE SWING ARM	M2-125/M2-150
9	X0481130000	6	BUSH,RR AXLE BRACKET
10	M2451050000	1	SPACER TUBE B
11	90190601500	1	HEXAGON FLANGE BOLT (M6*15L)
12	90191004000	2	HEXAGON FLANGE BOLT (M101.25P40L)
13	M2463010000	1	BACKSEAT PEDAL LEVER COMP
14	E1463020000	1	PEDAL LEVER, LH
15	E1463040000	2	LOCK PIN
16	E1463050000	2	SPRING
17	99010600000	2	BEARING BALL(1/4")
18	93520201200	2	COTTER PIN
19	M2463020000	1	BACKSEAT PEDAL LEVER COMP (L)
20	M2463010000	1	BACKSEAT PEDAL LEVER COMP
21	E1464020000	1	PEDAL LEVER, RH
22	M2464020000	1	BACKSEAT PEDAL LEVER COMP (R)
23	90190604001	4	HEXAGON FLANGE BOLT (M6*40L)
24	X0481070000	3	GREASE FILLING NUT
25	C1443020000	1	UPPER BEARING CAGE
26	C1443011000	1	LOWER BEARING CAGE
27	90191412500	1	EXAGON FLANGE BOLT
28	92061400000	2	LOCK NUT,FLANGE U TYPE
29	NA	2	AUTOMATIC OILING BUSH
30	90190601500	2	HEXAGON FLANGE BOLT (M6*15L)
31	90191420500	1	EXAGON FLANGE BOLT
32	M2451040000	1	SPACER TUBE A
33	90191422000	1	EXAGON FLANGE BOLT	M2-125/M2-150
34	90191002000	4	EXAGON FLANGE BOLT	M2-125/M2-150
35	M24510610000	1	SPACER TUBE C	M2-125/M2-150
36	X0481140000	6	DUSTPROOF
37	96550202600	2	NEEDLE BEARING
38	M24510820000	1	PULL LINKAGE ASSY.

Page 27 Fuel Tank

Genuine Blur Fuel Tank Parts
No.	Part No.	Q’TY	PART NAME	REMARK
2	M2521500000	1	FUEL TANK(W/H EEC)	W/H EEC
3	90190601500	7	HEXAGON FLANGE BOLT (M6*15L)
4	M2521700000	1	FUEL GUAGE COMP.
5	90200501400	4	HEXAGON FLANGE BOLT
6	C152A090000	1	PACKING, FUL GAUGE
7	M2521600000	1	AD.FUEL TANK
8	M2526040000	1	BACK FUEL HOSE(AD TANK TO TANK)
9	922213000001	2	HOSE CLAMP
10	M2526020000	1	FUEL HOSE(PUMP TO AD. TANK)	M2-125/150
11	M2521800000	1	FUEL PUMP COMP	M2-125/150
12	ES706020000	1	WIRE CLIP
13	M2521200000	1	FUEL FILTER ASSY	M2-125/150
14	M2526010000	1	VACUUM HOSE(PUMP TO INTAKE MANIFOLD)	M2-125/150,W/O SAI
15	E1706110000	2	PIPE CLIP
16	E1706110000	2	PIPE CLIP
18	M25260320000	1	FUEL HOSE(AD. TANK TO CARBURETOR)	M2-125/150
19	E1706110000	2	PIPE CLIP
20	92211200001	1	HOSE CLAMP
21	P65212100001	1	FUEL FILTER
22	M252A010000	1	FUEL PIPE(FILTER TO PUMP)
23	M252A020000	1	FUEL PIPE(TANK TO FILTER)
24	M252A030000	4	HOSE CLAMP
25	M2521220000	1	COARSE FUEL FILTER

Page 28 Center Stand, Side Stand

Genuine Blur Center Stand, Side Stand
No.	Part No.	Q’TY	PART NAME	REMARK
1	M24610026000	1	CENTER STAND COMP
2	C1701050000	1	CUSHION RUBBER
3	E1461121000	1	CENTER STAND SPRING
4	90191003500	1	HEXAGON FLANGE BOLT (M10*1.25P
5	M24610100000	2	BUSH
6	M2462001600	1	SIDE STAND
7	92061000001	1	U TYPE FLANGE NUT(M10*1.25P)
8	C2462120000	1	SPRING,SIDE STAND
9	M2486002000	1	ENGINE HANGER ASSY.
10	90191018000	1	HEXAGON FLANGE BOLT
11	92061000001	1	U TYPE FLANGE NUT(M10*1.25P)
12	M2486070000	2	RUBBER,DAMPER
13	C14860500001	1	CUSHION RUBBER
14	M2486010000	2	HEXAGON FLANGE BOLT

Page 29 Wire Harness

Genuine Blur Wire Harness
No.	Part No.	Q’TY	PART NAME	REMARK
1	M25816030000	1	WIRE HARNESS , MAIN	M2-125/M2-150
2	ES586600000	1	RESISTOR	DC LIGHTING
3	90190601500	2	HEXAGON FLANGE BOLT (M6*15L)
4	B5583600000	1	HORN	M2-125/M2-150
5	90190801200	1	HEXAGON FLANGE BOLT (M8*12L)
6	M2584600000	1	COIL COMP	M2-125/M2-150
7	90070502000	1	CR TRUSS HD MACHINE SCREW(M5*20L)
8	92110500000	1	SPRING LOCK WASHER
9	98701215000	1	FUSE, 15A	M2-125/M2-150
11	P1701190000	1	RUBBER BRACKET
12	C1582001000	1	CDI UNIT ASSY.	M2-125/M2-150
10	C1581001000	1	STARTER RELAY	M2-125/M2-150
14	C2584000000	1	VOL REGULATOR COMP.	DC LIGHTING
15	90190601500	1	HEXAGON FLANGE BOLT (M6*15L)
16	92030600004	2	HEXAGON NUT	M2-125/M2-150
18	M2583020000	1	BATTERY (+)LINE	M2-125/M2-150
19	M25520000000	1	IGNITION SWITCH COMP.
20	90040602003	2	CR TRUSS HD MACHINE SCREW
21	C15825010000	1	HEADLAMP CONTROLLER	DC LIGHTING
22	P2586011000	1	FLASHER RELAY ASSY
23	M255B010000	1	KEY INDICATOR ASSY
24	ES55B010000	1	DUMMY KEY
25	92130600000	1	TEETH TYPE WASHER
26	C158A010000	1	DIODE ASSY.
27	M25843000000	1	LUGGAGE LAMP DELAY CONTROLLER
29	M25816110000	1	CONNECTING WIRE, HEADLAMP

Page 30 Labels

Genuine Blur Labels
No.	Part No.	Q’TY	PART NAME	REMARK
1	C16030000001	1	NOTICE STICKER
2	C16030100001	1	OIL CHANGE STICKER
3	C1603020000	1	STICKER, FUEL TYPE
4	M2352030000	1	PASSING ACCELERATION INFORMATION
5	P6603010000	2	E.E.C MARK STICKER
6	M26031000000	1	ENGINE INFORMATION STICKER
7	M26030300000	1	NOISE EMISSION CONTROL INFORMATION PAPER
8	C1603070000	1	TIRE INFORMATION PAPER
9	M26012900000	1	G WINSHIELD ORNAMENT STICKER
10	M26013000000	1	SIGNAL LAMP ORNAMENT STICKER,LH
11	M26013100000	1	SIGNAL LAMP ORNAMENT STICKER,RH
12	M26013200000	2	BLUR-BODY COVER STICKER
13	M26013300000	1	BLUR-WINSHIELD STICKER
14	M26013400000	1	FRT FENDER STICKER
15	M26013500000	2	HEAD LIGHT STICKER,UPPER
16	M26013600000	1	LOWER COVER STICKER,LH
17	M26013700000	1	LOWER COVER STICKER,RH

Page 31 EEC System

Genuine Blur E.E.C System
No.	Part No.	Q’TY	PART NAME	REMARK
1	M2524000000	1	EEC CONTROL SYSTEM
2	M2524040000	1	FUEL CUT VALVE
3	M2524020000	1	PIPE
4	M2524010000	1	PIPE
5	M2524030000	1	PIPE
6	E9524070000	1	ORIFANE PIPE
7	C152D060000	3	PLATE CLIP
8	P552D080000	4	WIRE CLIP
9	92211300000	1	WIRE CLIP
10	P552D070000	1	WIRE CLIP
11	P6524120000	1	CONTROL VALVE
12	M2524050000	1	PIPE
13	M2524060000	1	CANISTER
14	92140600005	1	WASHER (6.4D13D1T)
15	90040602003	2	CR PAN HD MACHINE SCREW(M6*14L

_________________________________________________________

Please note the following changes in our hours:

December 24th: Open 10-4

December 25th - January 1st: Closed for Holidays

You may still place your online orders

but there will there will be a delay on all special order parts*

*parts that we do not stock and have to special order from our suppliers

_________________________________________________________

Service and Repairs

We are currently accepting most makes and models of gas powered motor scooters for service and repairs. If your scooter is running great and just needs routine maintenance (ex: fluids, tires, drive belt) please call to schedule an appointment and we can do the service while you wait. If your scooter is in need of repairs, please bring it in during regular business hours. Repairs are completed on a first-come, first-served basis. Scooters are accepted only during business hours so please do not leave your scooter outside our building after store hours.

We want you to be thrilled with our service. If you experience a problem regarding our repairs on your scooter, please bring it back within 30 days so we can make it right. Vehicles that are not picked up upon completion after 3 business days will be charged storage fees of $10/day unless arrangements are made with management. After 30 days property will be considered abandoned and sold.

_________________________________________________________

All parts orders should be placed through this website.

For assistance please email us at parts@thescooterlounge.com.

We do not take phone orders.

Blur Body Panels
